| REINFORCED EXPANDED GRAPHITE SHEET |
| HENGSENG NO£ºHLP110 SERIES |
 HENGSENG
NO£ºHLS |
 |

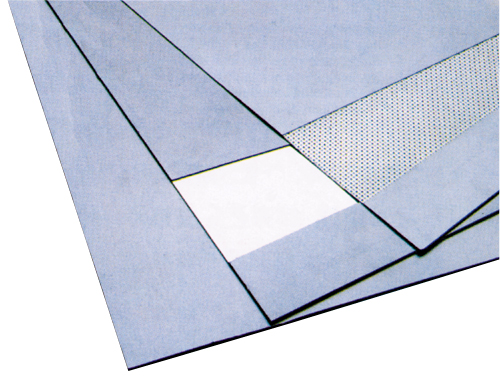

This product is
made from materials of three layers.At the middle of th e
composite plate is a stainless steel plate and on both sides
expanded graphite plates.Then,through specially pressing or
sticking process,after that,the product is done.
This
is a kind of sealing packing with excellent comprehensive
properties.It overcomes the disadvantage of being squeezed
out from and or sticking into flanges.
This
kind of packings has good compressibility and resilience,small
stress relaxation,fine compensation function for uneveness
of sealing surfaces and long working life.These plates are
suitable for making gaskets of cylinders for air compressors,internal
combustion engines and packings for different kinds of pipings
and flanges. |
|
| style |
Length(mm) |
Width(mm) |
Thickness(mm) |
| Reinforced Tanged insertion |
<=1500 |
<=1500 |
1.0-5.0 |
| Dlat Adhesive bond Insertion |
<=1500 |
<=1500 |
0.8-5.0 |
|
|
| Service Range |
|
NO. |
Reinforced
Inserted
Material |
Constru-ction |
Stability Under Compre- ssive
Stress (N/mm2) |
Temperature(°C) |
ASTM F36A-66
Compres- ibility
% |
ASTM F36A-66 Recovery %
|
DN3535
Gas
Permea-bility
cm2/min |
Thickness 1.5mm |
| In oxidizing Media |
In Non oxidixing Media |
ml/hr N2 |
|
| HLS111 |
Tanged Carbon steel Sheet
( Thickness
0.20-0.25mm) |
|
=>48 |
-10-450 |
-10-500 |
30-35 |
15-20 |
<=0.8 |
30 |
<0.5 |
| HLS112 |
SS304,316
AISI304, 316,etc.
Tanged
stainless
steel Sheet
(Thickness
0.1mm) |
|
=>48 |
-240-450 |
-200-560
(SS304)
-200-870
(SS316) |
30-40 |
15-30 |
<=0.8 |
60 |
<0.5 |
| HLS113 |
SS304,316
AISI304, 316etc stainless steelflat sheet
( Thickness 0.05,0.1mm) |
|
=>45 |
-240-450 |
-200-560
(SS304)
-200-870
(SS316) |
40-50 |
10-15 |
<=0.4 |
35 |
<0.5 |
| HLS114 |
SS304,316,316, etc stainless steel mesh |
|
=>40 |
-240-450 |
-200-560
(SS304)
-200-870
(SS316) |
30-35 |
15-20 |
<=1.0 |
7000 |
58 |
|
| |
|
|
| |
|
