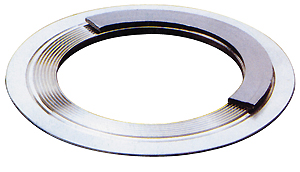

| SERRATED METAL GASKET |
| HENGSENG NO.:HLG700 |
 |
| |
 |
| Ret ring with concentric
serrations made of various types of metal. Used when bolting
force is not sufficient to seal a flat gasket, because it
contacts flange face only at serration peaks. Commonly used
on valve bannets and flanges attached to equipment. 3 types
of cross section as per right table are available. |
|
| Type & Cross
Section |
| Type |
Cross Section |
| Basic(A) |
 |
| With outer Ring(B) |
| With inner and Outer ring(C) |
|
|
| Depth of Serration(t) |
| Width |
4.5mm |
3.0mm |
Cross Section |
| Less than 10mm |
Inner diameter less than 200mm;0.75mm |
0.5mm |
 |
| 10mm and above |
1.0mm |
|
| |
|
|
| |
|
