| HEAT EXCHANGER GASKET |
| HENGSENG NO : EX SERISE |
 HENGSENG
NO : HLG114-EX |
 |
 |

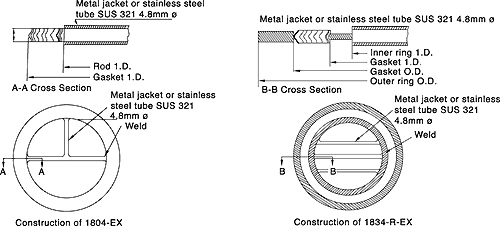

This EX series
gasket is designed and manufactured for muti-pass heat exchangers.
Pass ribs are welded to inner hoop of gasket or onner ring.
2 type of pass rids are available. Tube type or Metal jacket
type.
EX series gasket are available for asbestos, non-asbestos,
PTFE, graphite. For tongue and groove flange, stainless steel
rod ( SUS304,316 3.2mm ) fixed in circumferential groove of
the inner hoop is also available on request.
Max Pressure : 25Mpa
Max Temperature : 550°C |
|
| Type |
| |
X indicates filler
2-Non-asbestos 1-Asbestos 3-Graphite 4-PTFE |
| |
|
|
| |
|
